Locks

DEADLOCKS

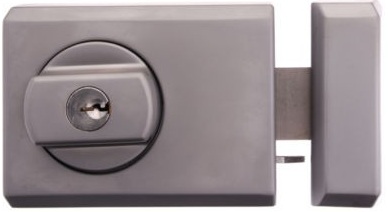

Whitco Deadlatch



The Whitco double cylinder deadlatch is nonhanded and suitable for external domestic doors.
Features and Functions:
  • safety release (automatically unlock the internal knob upon entry)
  • locking bolt automatically deadlatches when door is closed
  • 60mm backset
  • suits door thickness 30mm to 45mm
  • hardened steel ball in latch bolt resists cutting
  • hold back function
  • concealed anchorage points
  • door frame strengthener
  • also available with metal frame strike
  • 3mm packer also available
  • Available in satin chrome, & brown.

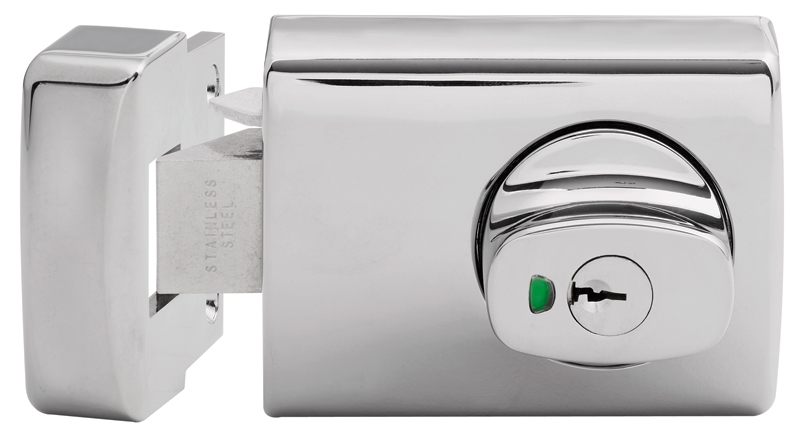

Lockwood 001 Deadlatch



The Lockwood 001 would have to be regarded as the benchmark of automatic deadlatches on the market today. Strength, durability, attractive design and high quality construction have combined to make the 001 an ideal lock for all domestic and many commercial applications.
Features and Functions:
  • automatic double cylinder deadlatch for timber frame
  • lockalert function (red when engaged and green when released)
  • safety release (automatically unlocks the internal knob upon entry)
  • 60mm backset
  • compatible to most restricted keying systems
  • optional 3mm packers are also available
  • cut resistant 18mm projection stainless steel bolt
  • 11 concealed anchorage points
  • door frame strengthener
  • hold back function
  • suits door thickness 30mm to 45mm
  • internal and external 5pin tumbler mechanism
  • Available in satin Chrome, Everbrass (Gold), Brown, Chrome Plate.

Lockwood 355 Deadlock

Features and Functions:

  • double cylinder deadlock
  • opened by key from the outside
  • key locks or unlocks the internal turnknob
  • lockable internal turnknob with inbuilt clutching device
  • strong interlocking case and mounting plate
  • concealed fixing
  • positive deadlocking action
  • 60mm backset
  • stainless steel bolt
  • suits door thickness 30mm to 45mm
  • internal and external 5pin tumbler mechanism
  • compatible with most restricted keying systems
  • supplied boxed with 2 keys
  • Available in satin Chrome, Everbrass (Gold), Brown, Chrome Plate.

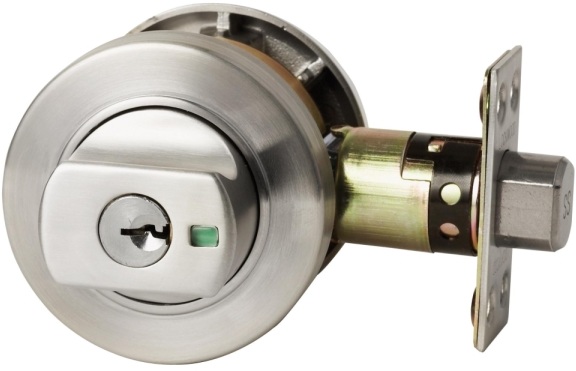

Lockwood 005 Deadbolt



Paradigm cylindrical deadbolt with lockalert status indicator, safety release and dual select locking suitable for both residential and architectural applications.

Features and Functions:

  • multi-mode slimline double cylinder deadbolt
  • outside is locked or unlocked by key (safety and secure modes)
  • outside bolt holdback by key (passage mode)
  • inside locked or unlocked by key (secure mode)
  • inside locked by turnknob (safety mode)
  • inside bolt holdback by turnknob (passage mode)
  • safety release to prevent being locked in
  • high strength counterbalance bolt
  • high security cut resistant stainless steel bolt
  • box strike with concealed cross grain door frame strengthening screw
  • adjustable 60mm – 70mm bolt
  • suits door thickness 35mm to 50mm
  • rose diameter 63mm
  • outside projection 12mm
  • inside projection 32mm
  • incorporates lockwood 001 6pin barrel
  • can be keyed to most restricted keying systems
  • Available in satin Chrome, Everbrass (Gold), Brown, Chrome Plate.





Carbine Deadbolt



The Carbine LB series of double cylinder deadbolts offer a cheaper alternative to the Carbine ALB series. The main points of difference are a lower quality bolt mechanism and fewer available finishes and packaging options.

Features and Functions:

  •  Suits Keyline LKW9 (Silca LW5) profile (6 pin
  • cylinder keyed to a 5 pin key)
  • Fully rekeyable to either simple keying alike or
  • master keying
  •  Able to accept a wide range of restricted barrels
  • Concealed fixing
  • Has a rose diameter of 70mm with the rosette supplied or 60mm without
  • Designed for doors with a thickness of 35mm – 45mm
  • Supplied with two spacing rings per lock to accommodate thinner doors
  • Can only be purchased with an adjustable 60mm – 70mm backset
  • Available in satin Chrome polished brass, antique bronze, chrome plate.













ENTRANCE SETS



Carbine 9000 Entrance Knob Set

The Carbine residential range of locksets offer an excellent choice in quality, reliability, good looks and value for money.

Features and Functions:

  • Entrance function, key outside, turnsnib inside
  • Tiebolt fixing
  • Knob height projects 63mm from door
  • Round knob design
  • 65mm rose diameter
  • Reliable 60-70mm adjustable backset
  • Good quality 6 pin brass cylinder that allows simple rekeying and a medium level of master keying
  • Supplied with 2 x C4 5 pin keys
  • Use Keyline LKW5 (Silca LW4) or Keyline LKW9 keys (Silca LW5) if using 6 pin option
  • Special model available with a 5 pin TES5 keyway cylinder (compatible with Gainsborough keys)
  • Available in satin Chrome polished brass, antique bronze, chrome plate.

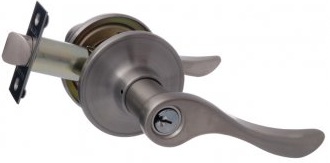

Brava LR600 Lever Entrance Set

Features and Functions:

  • entrance lockset outside opened by lever when free, key or turnsib locks or unlocks inside and outside lever
  • inside opened by lever when free
  • tiebolt fixing
  • lever design
  • residential grade
  • adjustable 60/70mm latch
  • 5pin cylinder assembly
  • rekeyable to 6pin
  • Silca LW4 keyway
  • Available in satin Chrome polished brass, chrome plate.





SECURITY SCREEN DOOR LOCKS



Whitco Tasman Mk3

Features and Functions:

  • hinged security or screen door lock
  • dual select feature provides the choice of privacy or deadlock from the outside
  • locked indication by snib
  • contemporary styled furniture
  • pre-assembled handles
  • extra wide serrated locking bolt
  • suitable for left or right handed doors
  • key overrides snib
  • automatic latching
  • accepts Whitco lazy cam profile cylinders (not included)
  • suits 20mm door thickness
  • optional multi point kits are available
  • finished in black







SLIDING DOOR LOCKS



Whitco Blaxland

Features and Functions:

  • reversible
  • solid metal D-style zinc diecast deadlock
  • suits aluminium and timber applications
  • 2mm thick single stainless steel locking beak with 6mm positive adjustment
  • suitable for a wide range of door thicknesses up to 35mm
  • 5pin inner and outer cylinders
  • compatible with most restricted keying systems (7105 barrel)
  • wide range of accessories available including strikes and pulls
  • finished in black
